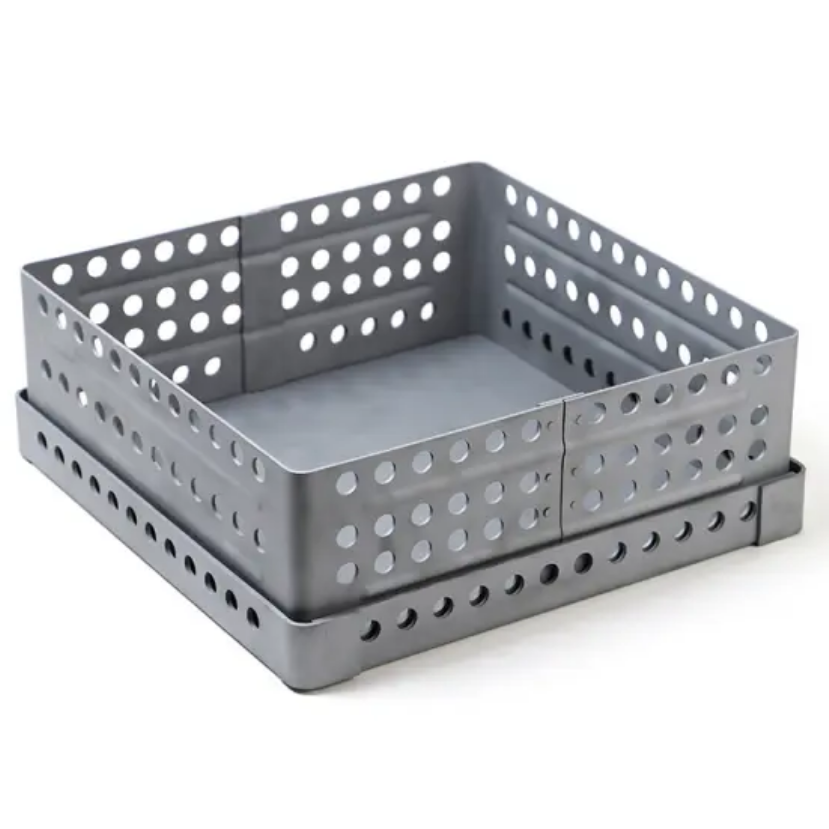

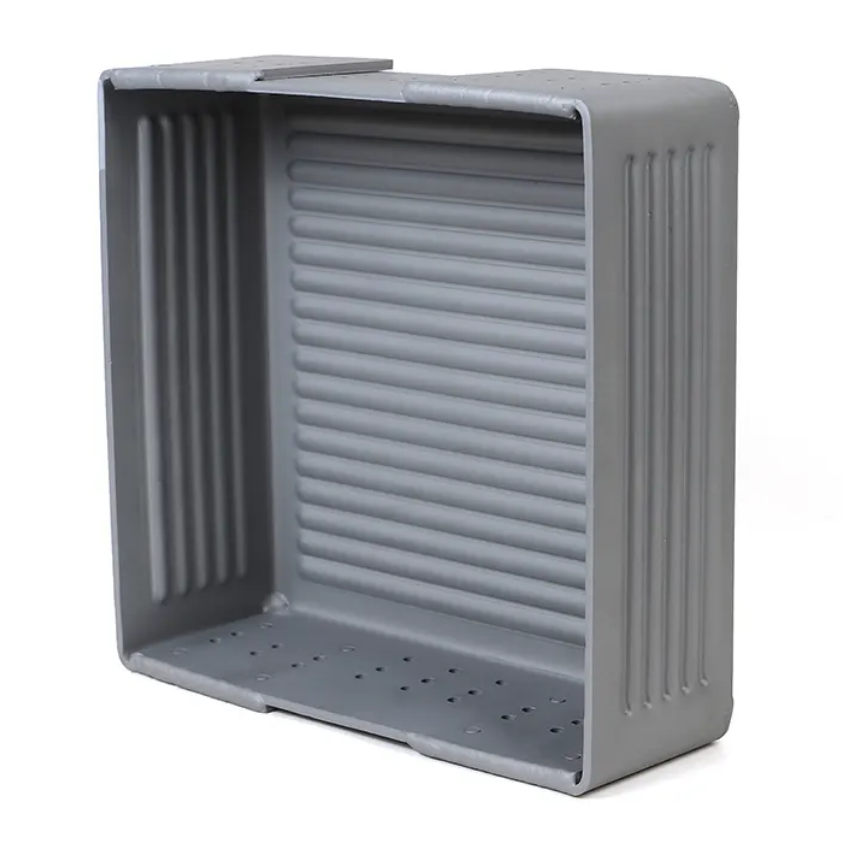

Wholesale shaped molybdenum boats for vacuum coating industry 310 210 510 molybdenum boat
-
- Crafted from premium-grade molybdenum, our Molybdenum Boats are engineered to withstand high temperatures and harsh environments, making them ideal for use in vacuum and high-temperature furnaces, as well as for evaporation and sputtering processes. The superior thermal and electrical conductivity of molybdenum ensures efficient heat transfer and uniform evaporation, making our Molybdenum Boats the preferred choice for thin film deposition and semiconductor manufacturing.
-
- With a high melting point and excellent resistance to corrosion and oxidation, our Molybdenum Boats are built to endure extreme conditions, ensuring long-lasting performance and minimal maintenance. The precision-engineered design of the boats allows for easy handling and precise positioning, facilitating seamless integration into various production processes
|
Appearance |
silver grey metal luster |
|
Density |
not less than 10.1g/cm3 |
|
Supply state |
processing |
|
Quality standards |
GB/T 3876-2007 (molybdenum & molybdenum alloy plates) |
Specifications of Molybdenum boats
Unit:mm
1. Height: 2~100
2. Width: 10~900
3. Length: 20~900
4. Thickness: 0.20~8
Special sizes can be manufactured based on customers' requirements
|
Production process |
Materials (molybdenum plates) -- cutting -- bending -- welding or riveted -- surfacing -- molybdenum boats |
|
Production equipments |
Wire cutting machine, water jet, bending machine, riveting machine, argon arc welding, sandblasting machine |
|
Applications |
Made with the rolling molybdenum plate which density is 10.1g/cm3, molybdenum boat has a square appearance, level bottom and accurate size. It plays an important role in the sintering of high precision ceramic and tungsten heavy alloy. |
Materials for molybdenum boat have two kinds:
one is pure molybdenum; the other is high temperaturemolybdenum added rare earth. Atmosphere requirement is the same, but service life is different, so does the application. Pure molybdenum is used for evaporation coating, and high temperature molybdenum for sintering.
GET FINANCING!
Other products can be provided based on customer’s requirements
