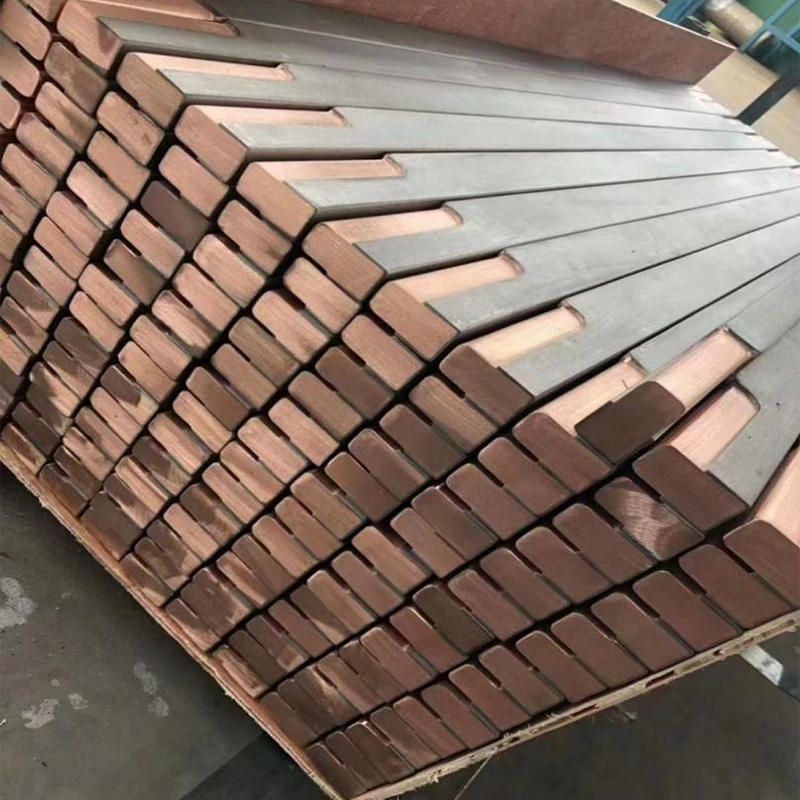

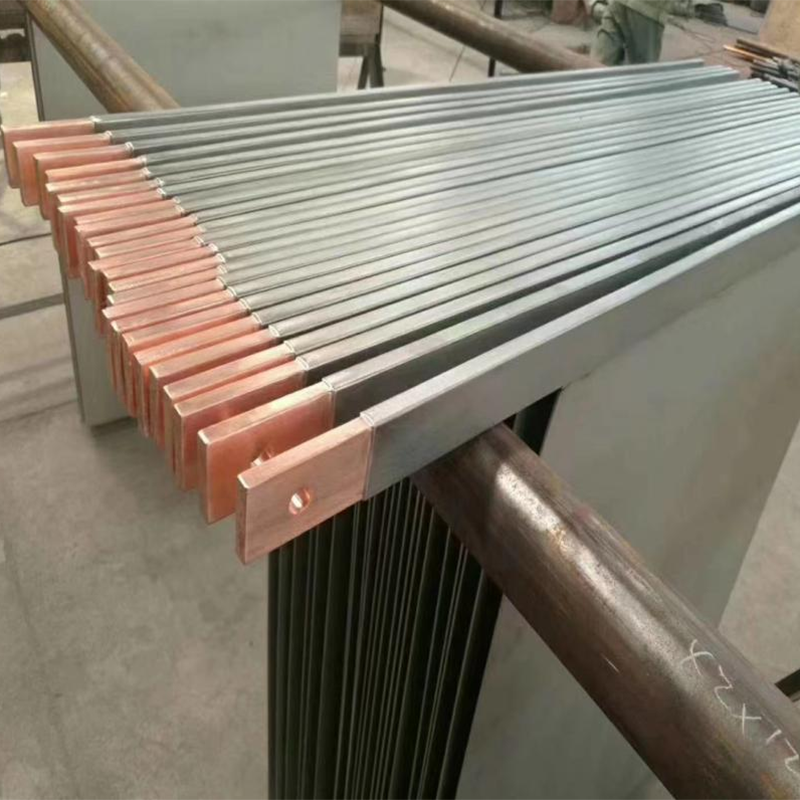

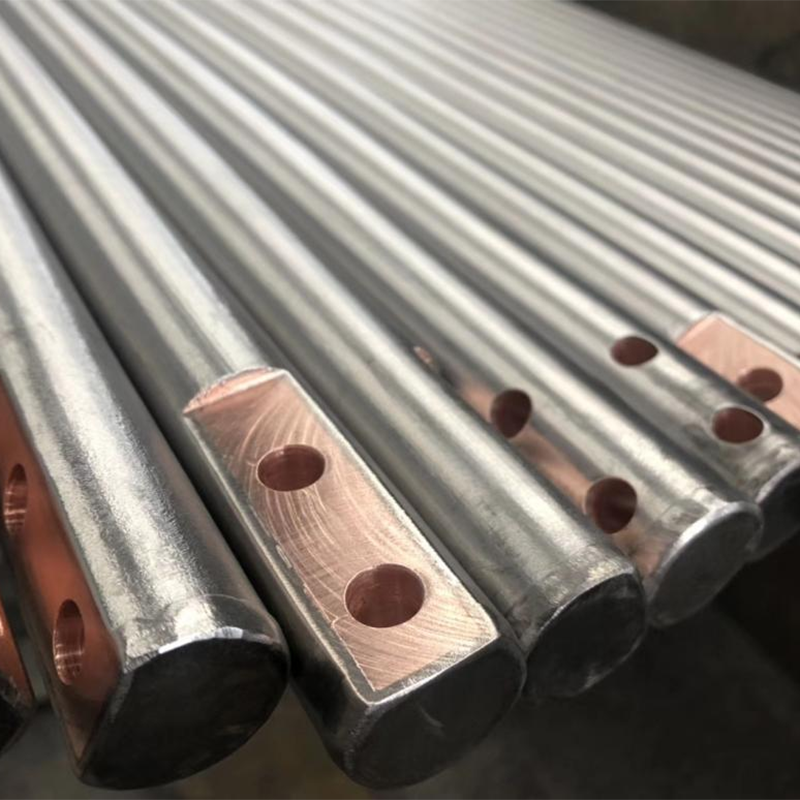

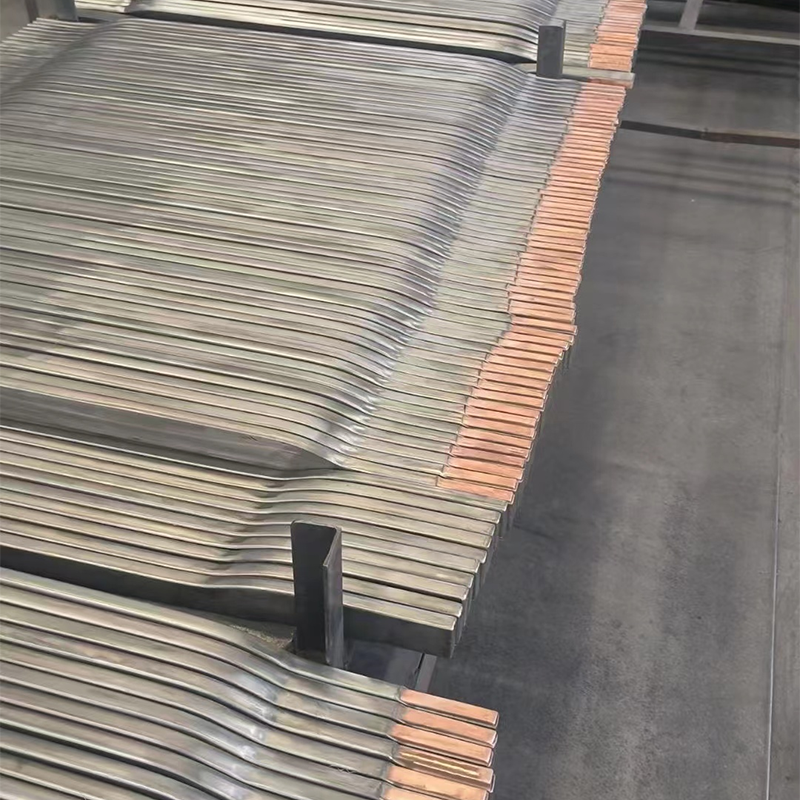

Titanium clad copper bar, Titanium clad copper bar, itanium Clad Copper Tube
-
- Excellent conductivity and fully ductile for shaping and forming due to OFHC (Oxygen-Free High Conductivity)Copper Core and Great weldability for connecting, capping and joining.Save 10%~30% energy in plating system.
-
- Ti Cu Titanium Clad Copper Steel Bar Sheet is a copper bar cladding with a certain thickness of titanium level with metal bonding or explosion bonding technology, mainly used as a stand in plating, electrolysis, hydrometallurgy, PCB processes.
-
- Because it has not only the original conductive property of the copper bar, but also protecting the copper bar from corroded by titanium level, therefore avoid the traditional copper bus bars shortcomings: danger and difficulty changing the anode metals, copper bar corrosion, heat generation caused by the electrical contact resistance in electrolysis and plating defects due to corroded and fallen copper compound, can greatly lower pollution of electrolyte.
-
- Now, the submerged Ti clad copper bus bar is the best choice for many industries including print circuit makers, steel (copper, gold) refining manufacturers.
Low processing costs
Resistance to acid corrosion. Resistance to alkali corrosion.
Resistance to chlorine ion corrosion due to outside Titanium layer.
Excellent conductivity and fully ductile for shaping and forming due to OFHC (Oxygen-Free High Conductivity)
Copper Core and Great weldability for connecting, capping and joining.
Save 10%~30% energy in plating system
Specification
|
Products |
Clad Materials |
Core Materials |
Size(mm) |
Standard |
|
Titanium clad Copper (Ti/Cu) |
No. 37025 or 37025 or 3.7055, ASTM B 265 Gr1 or Gr2 |
U2, E-Cu58, CU-ETP, CW004A, UNS No.C 11000,T2, SE-Cu, CU-HCP, CW021A, UNS No.C 10300 |
Wire 2 – 6.35 mm (0.078" – 1/4"inch) |
ASTM B432 ASME SB432, etc. |
|

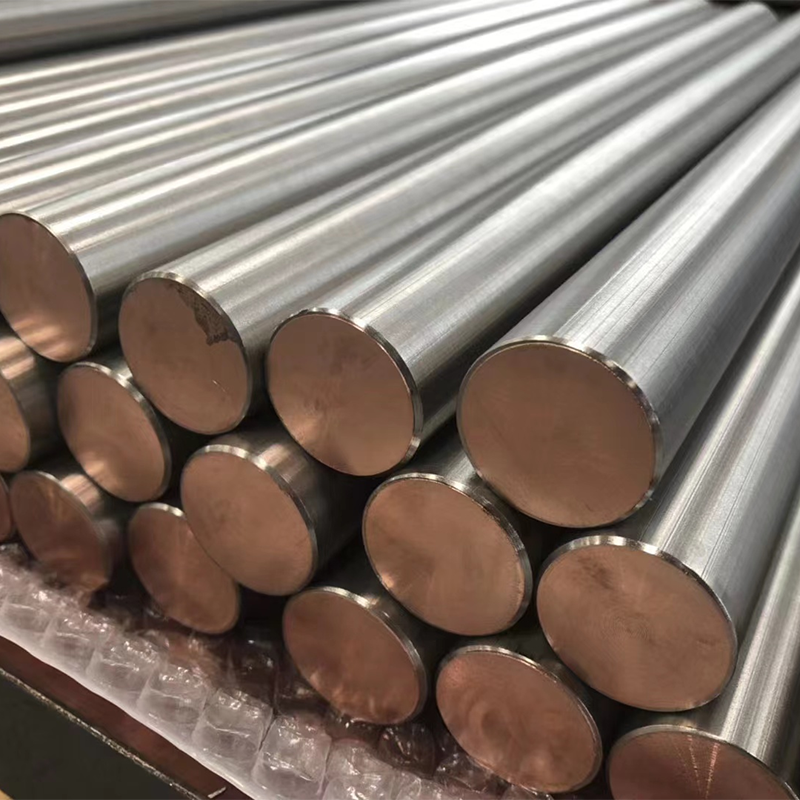

Round 6.35 - 44.45 mm (0.25" – 1.75"inch) |
||||
|
Rectangle-flat 20 x 120 mm (0.8" x 4"inch) |
||||
|
Titanium clad Stainless Steel or Duplex ( Ti/SS) |
SS 316L 304 |
U2, E-Cu58, CU-ETP, CW004A, UNS No.C 11000,T2, SE-Cu, CU-HCP, CW021A, UNS No.C 10300 |
Wire 2 – 6.35 mm (0.078" – 1/4"inch) |
ASTM B898, ASME SB898, etc. |
|
Round 6.35 - 78 mm (1/4" – 3"inch) |
||||
|
Rectangle-flat 20 x 120 mm (0.8" x 4"inch) |
||||
|
Titanium clad Aluminum (Ti/Al) |
SS 316L 304 |
Al 1050,1060,1100 |
Wire 2 – 6.35 mm (0.078" – 1/4"inch) |
ASTM B898, ASME SB898, etc. |
|
Round 6.35 - 78 mm (1/4" – 3"inch) |
||||
|
Rectangle-flat 20 x 120 mm (0.8" x 4"inch) |
||||
|
Stainless-steel clad copper (SS/Cu) |
SS 316L 304 |
U2, E-Cu58, CU-ETP, CW004A, UNS No.C 11000,T2, SE-Cu, CU-HCP, CW021A, UNS No.C 10300 |
Wire 2 – 6.35 mm (0.078" – 1/4"inch) |
ASTM B898, ASME SB898, etc. |
|
Round 6.35 - 78 mm (1/4" – 3"inch) |
||||
|
Rectangle-flat 20 x 120 mm (0.8" x 4"inch) |
GET FINANCING!
Other products can be provided based on customer’s requirements
