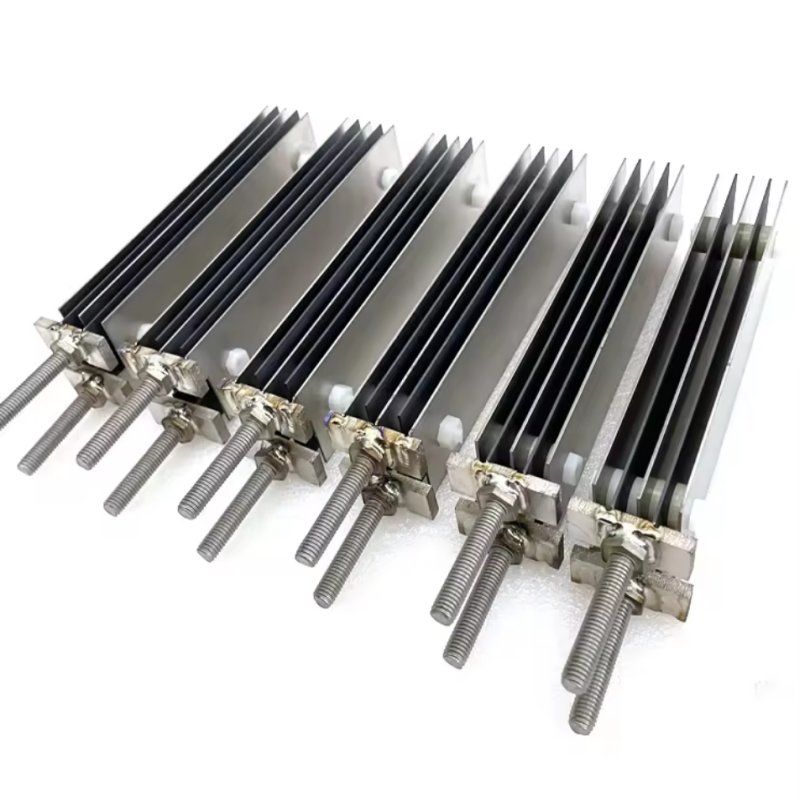

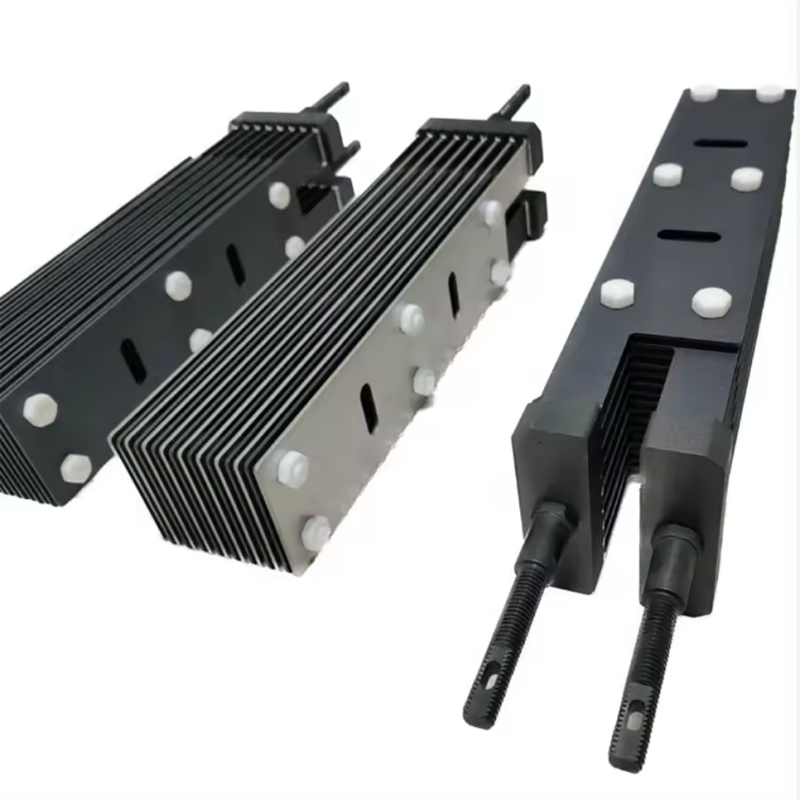

Platinum Platinized Plated Titanium Anode For Electrolysis
-
- Our Titanium Anode is engineered using high-quality titanium, ensuring superior corrosion resistance and longevity. This makes it an ideal choice for various electrochemical processes, including water treatment, metal finishing, and electrolysis. With its robust construction, it can withstand harsh operating conditions, making it a reliable and cost-effective solution for long-term use.
Titanium Anode/ Titanium MMO
|
Material |
Gr1 GR2 titanium based |
|
Coating |
Iridium-Tantalum, Ruthenium-Iridium, Ruthenium-Iridium-Titanium,Platinum,Ruthenium oxide, Iridium oxide as coating |
|
Technology |
Sand blasting, Acid washing and Brush coating |
|
Dimension |
According to customers’ drawing |
|
Shape of base material |

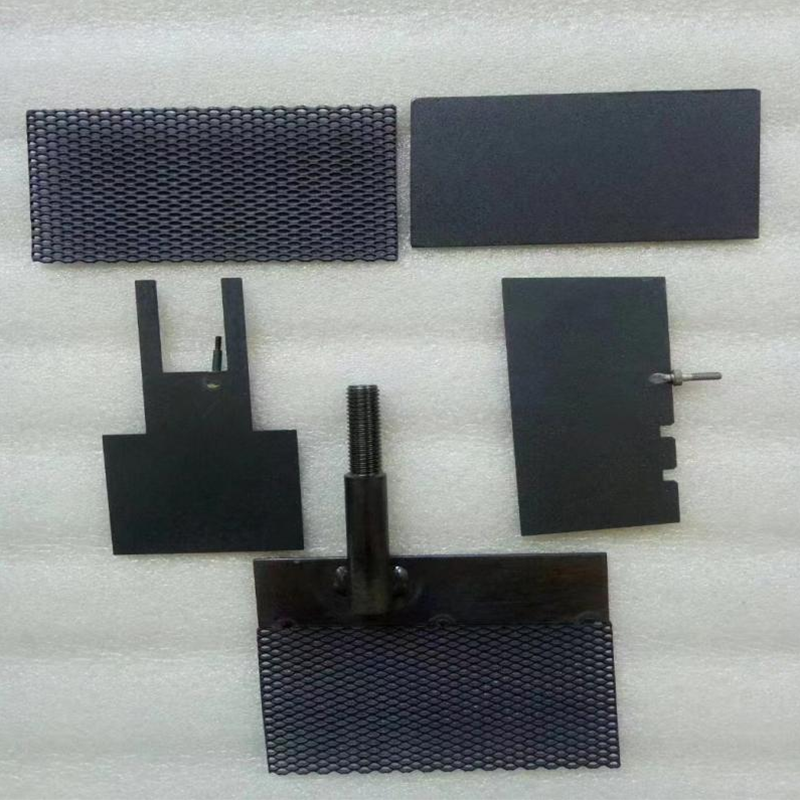

Sheet, pipe, rod, wire and mesh |
|
Parameter |
1.Current density≤2000A/m2 2.PH 0.1-14 3.Max content of fluoride ion is 200PPM |
|
Electrolyte |
Salt water/ Saline solution/Brine/Sea water |
|
Advantages |
1.Improved resistance for oxygen/chlorine mixed evolution 2.Range of compositions for various duties available 3.Improved resistance in acidic media 4.Low wear rate |
Features
1. High corrosion resisting
2 .High current efficiency
3. Long working life
4. High current density
5. Light-weight
6. Stable operating voltage
7. The base material can be reused
2 .High current efficiency
3. Long working life
4. High current density
5. Light-weight
6. Stable operating voltage
7. The base material can be reused
Application
1. Water (Brine and Sea water) Treatment.
2. Chemical, Paper, Petro-Chemical and Fertilizer Industries.
3. Textile Industries.
4. Electrical & Electronics Engineering Industries.
5. Metal Finishing, Electro Plating, Semi Conductors and PCB Industries.
6. Chemical Industries.
7. Chlore-Alkali & Desalination application.
8. Cathodic Protection (ICCP)
2. Chemical, Paper, Petro-Chemical and Fertilizer Industries.
3. Textile Industries.
4. Electrical & Electronics Engineering Industries.
5. Metal Finishing, Electro Plating, Semi Conductors and PCB Industries.
6. Chemical Industries.
7. Chlore-Alkali & Desalination application.
8. Cathodic Protection (ICCP)
Quality Guarantee
(1) Main quality indicators: chemical composition, mechanical property, tolerance.
(2) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium material in accordance with the International standard.
(3)With our own R&D, Production, Processing and Sales system, we always struggling to supply the products with the most excellent quality and the most favorable price and the best service.
(4)The original Mill Test Certificate is available to be attached to the delivery.
(2) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium material in accordance with the International standard.
(3)With our own R&D, Production, Processing and Sales system, we always struggling to supply the products with the most excellent quality and the most favorable price and the best service.
(4)The original Mill Test Certificate is available to be attached to the delivery.
Manufacturing Process
ingot billet &round bar-- chemical element analizing---bandsaw cutting---forging---heat treatment---inspection--stock of unmachined blanks---lathe----deep hole drilling
---inspectction---marking---packing with plywoodcase.
---inspectction---marking---packing with plywoodcase.
