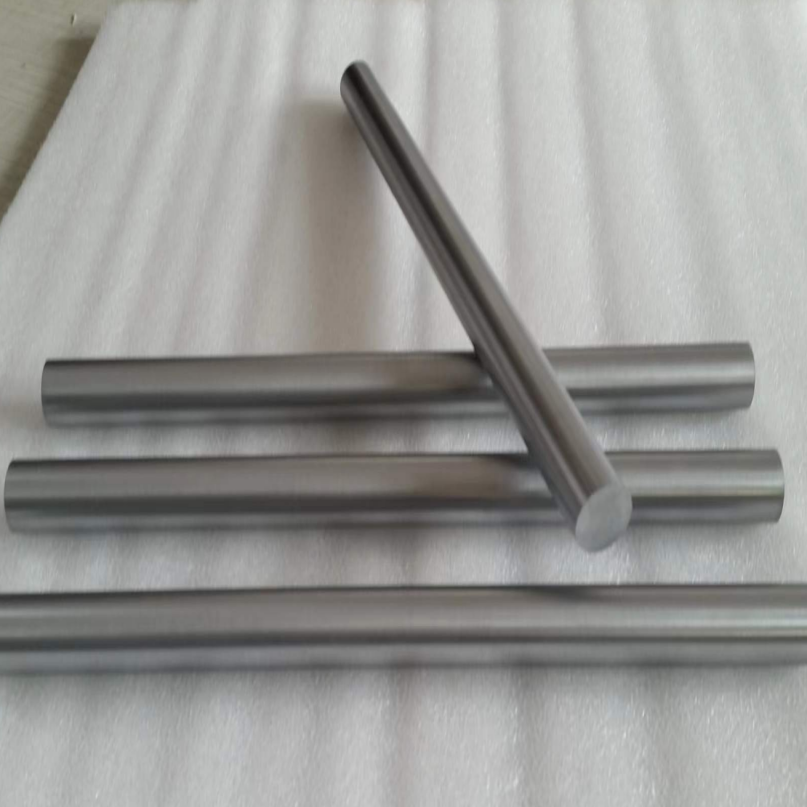

Molybdenum Rod For Zirconia Sintering Furnace

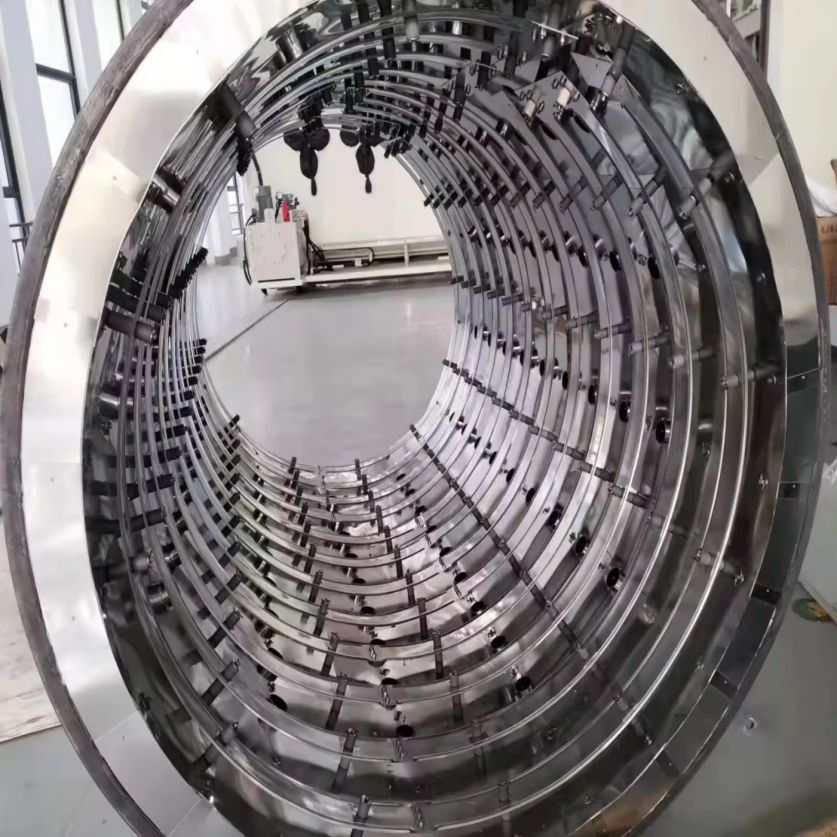

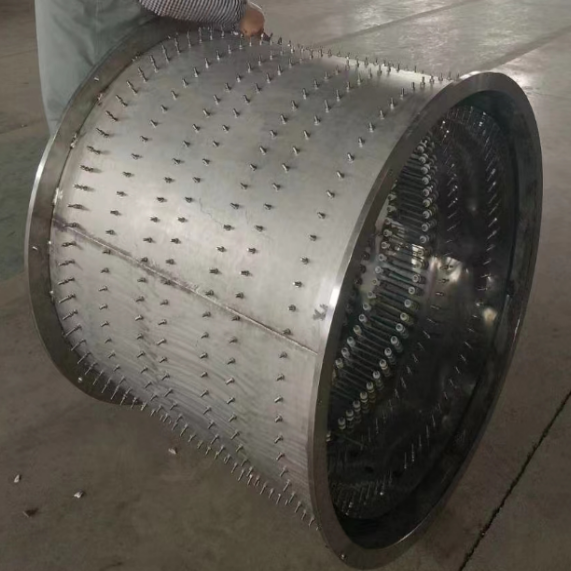

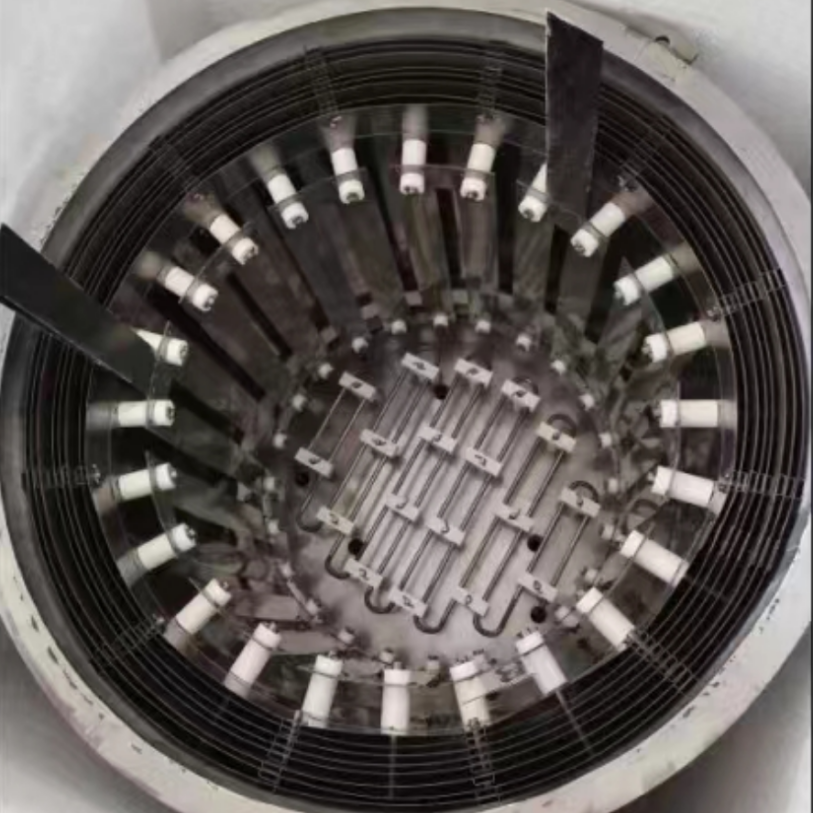

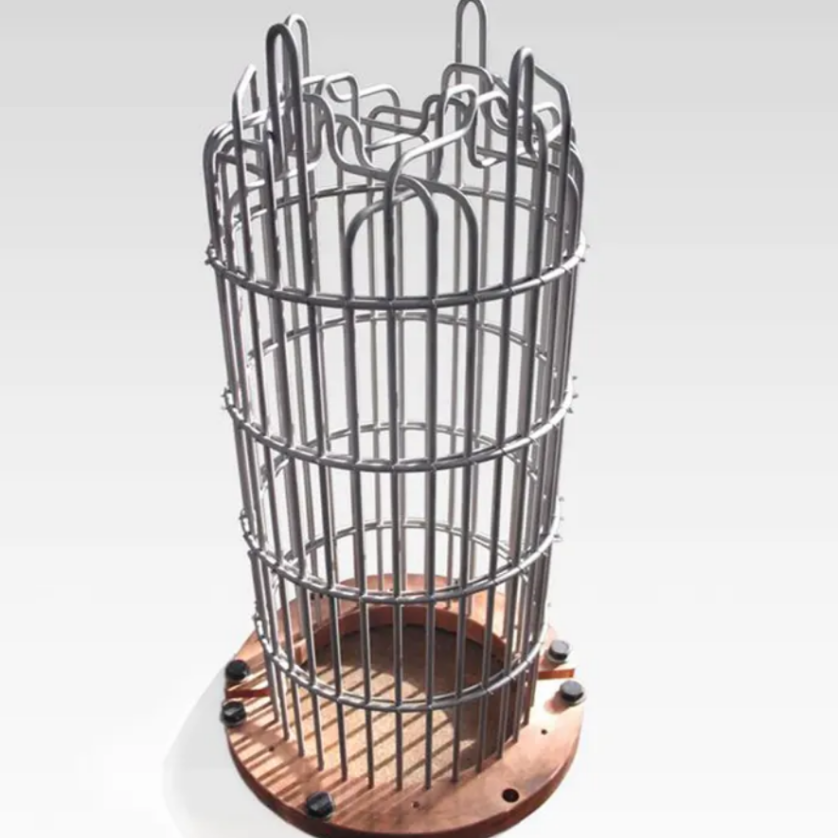

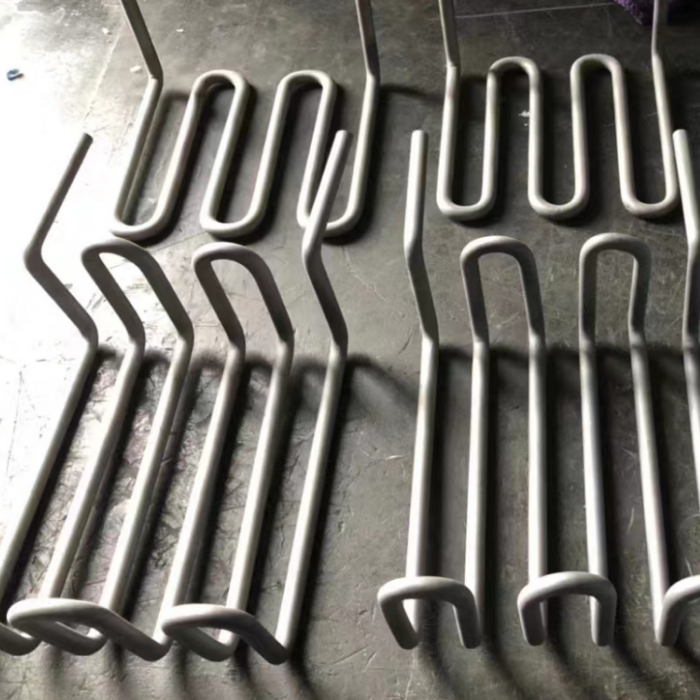

1.Molybdenum heater, as the heat source of vacuum melting furnace, vacuum annealing furnace and vacuum difusion welding equipments, provide a stable hot zone for them.
2.Molybdenum heating element in high purity and high density together with reasonable design and excellent manufacture is of great significance to sa uniformity and stability of the hot zone.
-
- Features: Parameters of the Molybdenum Heater: 1.The purity of Mo is more than or equals to 99.95%; 2.The density of molybdenum heater is above 10.2g/cm3; 3.The application temperature environment should be no more than 1700℃.
-
- The molybdenum heater is engineered using high-quality molybdenum material, known for its excellent thermal and electrical conductivity, making it an ideal choice for applications requiring high-temperature heating. With a robust construction and superior heat resistance, this heater is capable of withstanding extreme temperatures, making it suitable for a wide range of industrial processes.
-
- Whether it’s for heat treatment, sintering, or other high-temperature processes, our molybdenum heater delivers consistent and uniform heating, ensuring precise control over temperature levels. This level of precision is essential for industries where accuracy is paramount, such as semiconductor manufacturing, aerospace, and automotive applications.
| Grade |
MO1 MLa TZM |
| Density | ≥10.2g/cm3 |
| Purity | 99.95（%） |
| Impurity element | 0.04（%） |
| Characters | High temperature and corrosion resistance |
| Production process | Forging; rolling; machining; cutting; stamping |
Supply state： Rotary forging, lathing, polishing, sintering
Specification
|
Diameter |
Black molybdenum rod |
Polished molybdenum rod |
Length tolerance(mm) |
||
|
Diameter tolerance% |
Circular degree% |
Diameter tolerance% |
Circular degree% |
||
|
0.8≤d≤3.0 |
±2 |
2 |
±0.03 |
0.03 |
L≤50±0.550 300 |
|
3.0 |
±2 |
2 |
±0.05 |
0.05 |
|
|
6.5 |
±2 |
2 |
±0.08 |
0.08 |
|
|
13.5 |
±2 |
2 |
±0.15 |
0.15 |
|
|
25.0 |
±2 |
2 |
±0.25 |
0.25 |
|
Application: High temperature furnace, heater, hot field, heat screen, vacuum furnace heating chamber
GET FINANCING!
Other products can be provided based on customer’s requirements
